Gibson L-5 Arch Top Acoustic Guitar (1935)
LOADING IMAGES

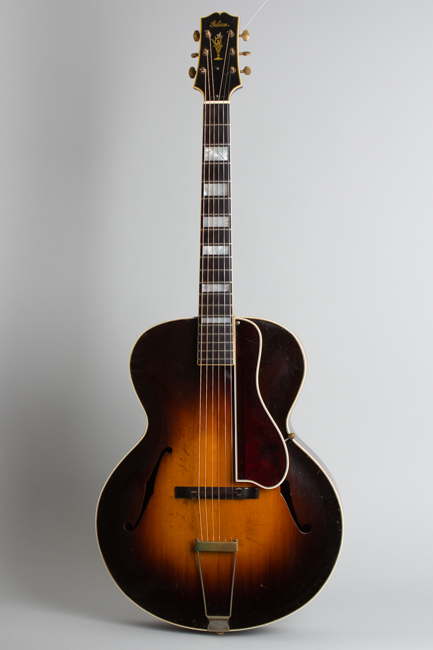

Gibson L-5 Model Arch Top Acoustic Guitar (1935), made in Kalamazoo, Michigan, serial # 92035, Cremona Brown Sunburst finish, curly maple back and sides, spruce top; maple neck with ebony fingerboard, original black hard shell case.
This 1935 L-5 is a fine eminently playable example of the pre-eminent orchestra guitar of its era. The L-5 was the original f-hole carved top guitar, and an extremely fine instrument by any standard. Debuting in 1923-4, the L-5 was the first modern archtop guitar with violin-style F-holes, a design widely copied ever since. At the time this one was built just over ten years later it was still the top of Gibson's line and considered by most players the finest guitar orchestra made.
By 1935 dance and jazz band banjoists had almost universally converted to guitar; the L-5 along with Epiphone's competing Deluxe were the choice of nearly all top professional guitar players. Eddie Lang, the era's most influential guitarist, switched from a Gibson L-4 to a dot-neck (probably 1927) L-5, then to an early block neck L-5 around 1930, setting the trend for all to follow. From that time on the L-5 ruled the roost for orchestra guitars, giving Gibson a dominance in this style of instrument they never really lost.
That said, these early 16" L-5s are fairly rare guitars today. Retailing at $275.00 (plus case), this was an extremely expensive instrument for the time; the top-of-the-line Martin pearl-trimmed Style 0M-45 retailed at full $100.00 less. At the height of the Depression, only working professional players with steady salaries could afford the indulgence of such an instrument.
Most of these original 1930s L-5s were played extensively for many years, some owners continuing to prefer them to any other guitars for decades. They can sometimes be seen in the hands of top recording studio players well into the 1960s. As working guitars, these instruments were often modified, refitted, or refinished with little regard for originality. This example is unusually well preserved showing signs of serious use but no major modifications and remains in delightfully original condition.
The guitar was likely shipped around mid-1935; the transitions between the many variants of the 16" L-5 are inexact at best. At that point the new 18" wide Super 400 and companion 17" wide "Advanced" L-5 were just about ready to launch, with this original style L-5 soon to be supplanted by them. In practice this was not an instant transition as some players continued to prefer the older L-5 design and some continued to be shipped from Kalamazoo for several years onward.

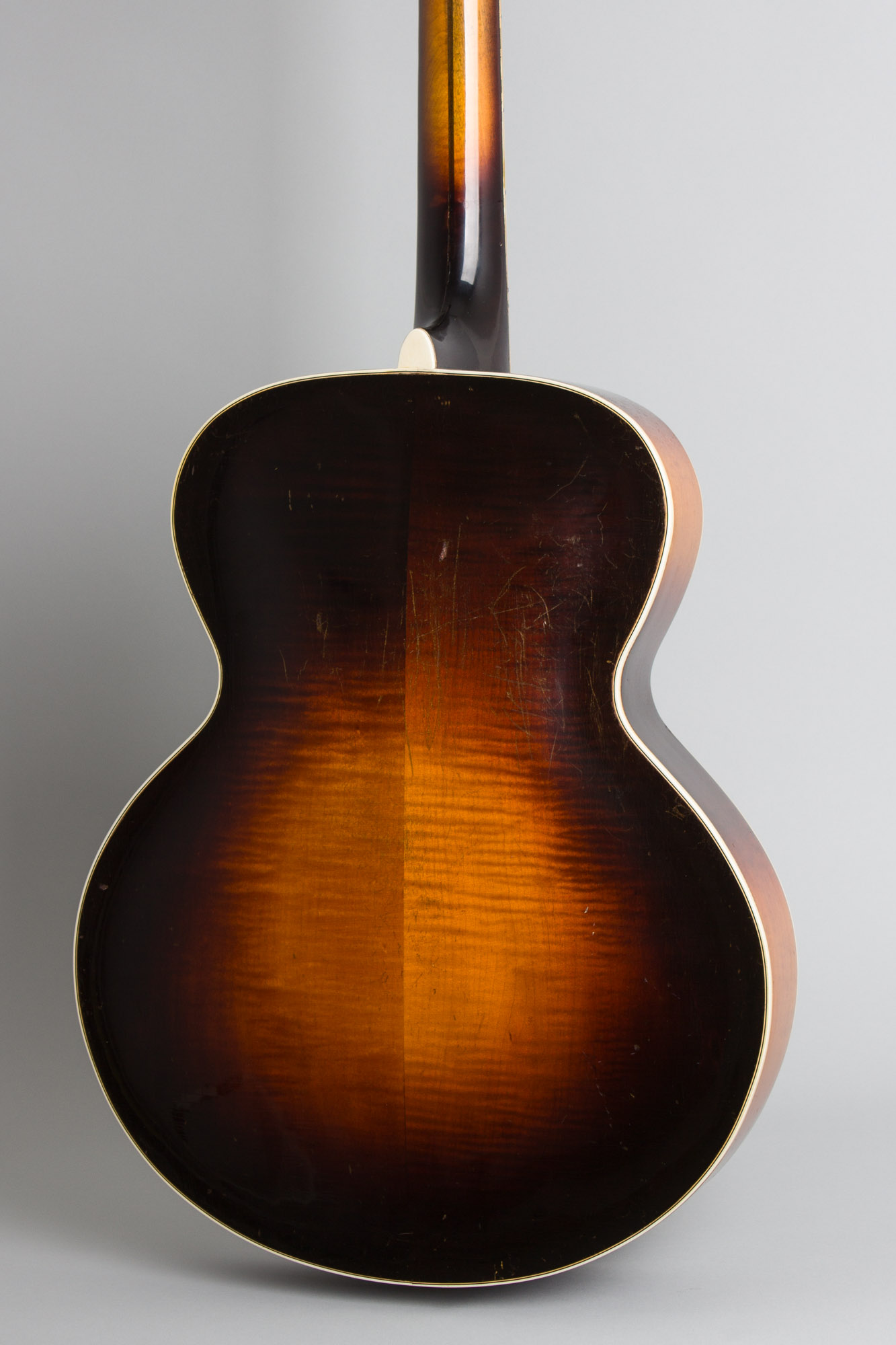

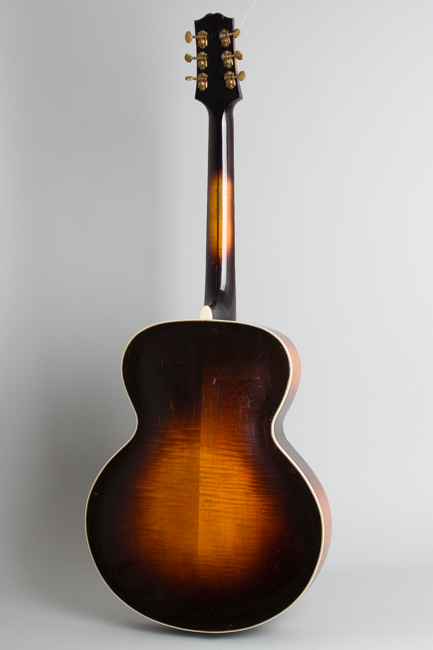

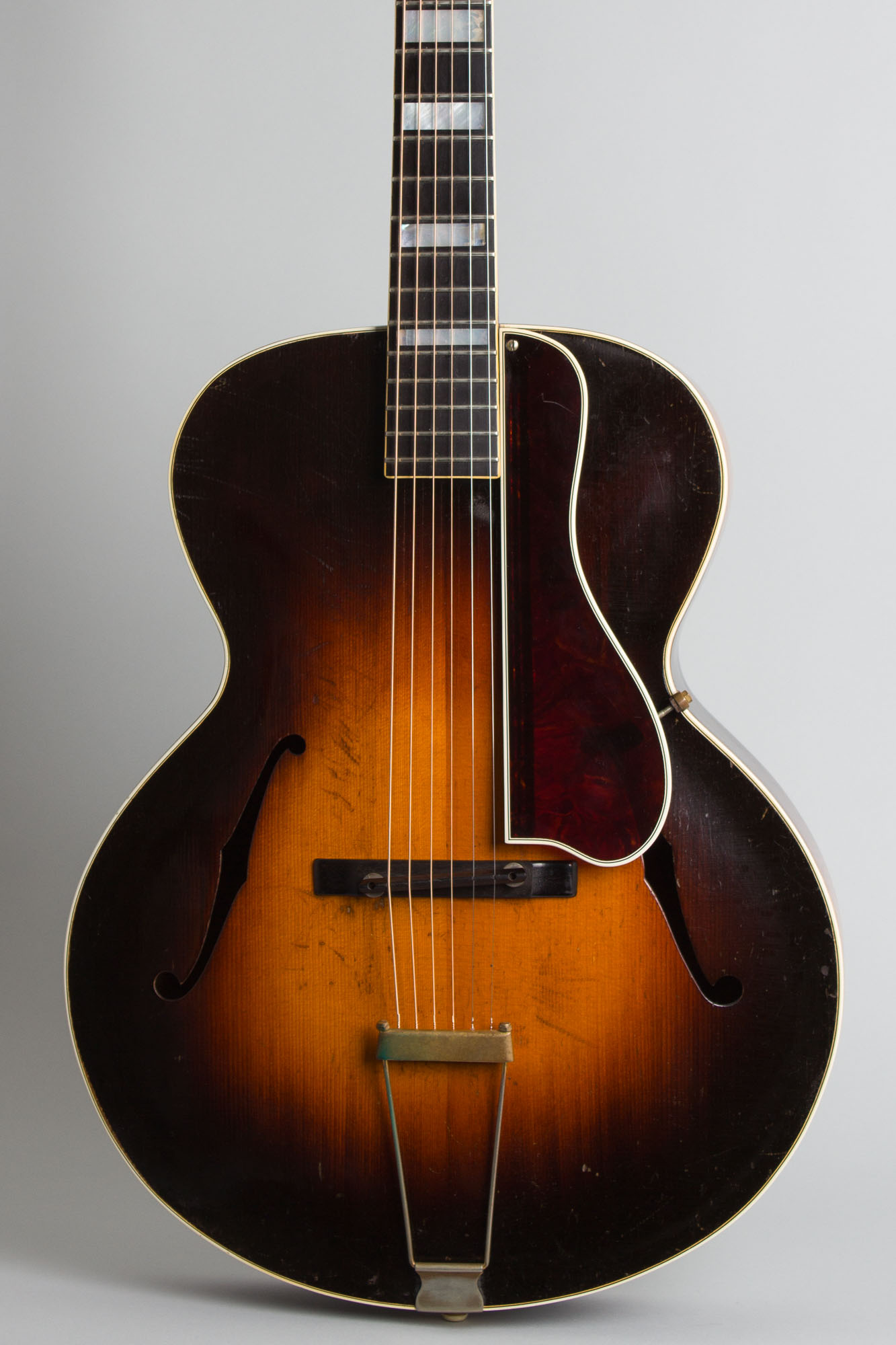

The top, back, and sides on this guitar carry a beautifully blended dark sunburst finish; the back is tiger maple with a pronounced figure. The top and back are triple bound in white celluloid. The braces are the "kerfed" style used in the early 1930's, a production expedient allowing faster build times. While this has become a much-discussed feature of late, we do not find tremendous sonic differences between many of the L-5's of this era regardless of how they were braced.

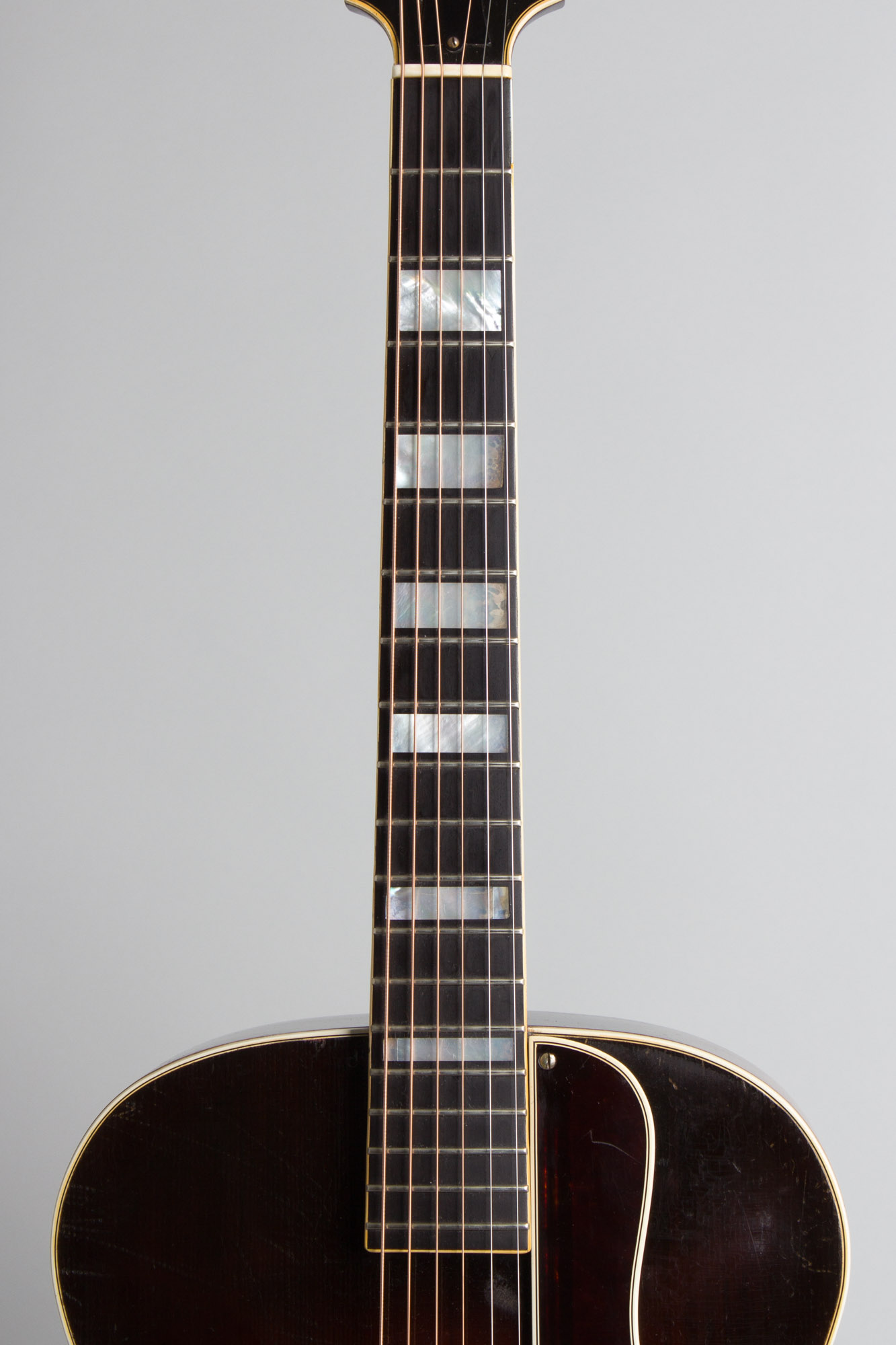

The side-line bound, straight-end ebony fingerboard has genuine pearl block inlay in place of the pearloid found on earlier 1930's versions. The 3-piece laminated curly maple neck is not as slim as some with a subtly rounded spine, with just a hint of the sharper "V" profile common a couple of years earlier. While not as chunky as the original Loar-era necks, this one feels more substantial than many from a couple of years earlier.

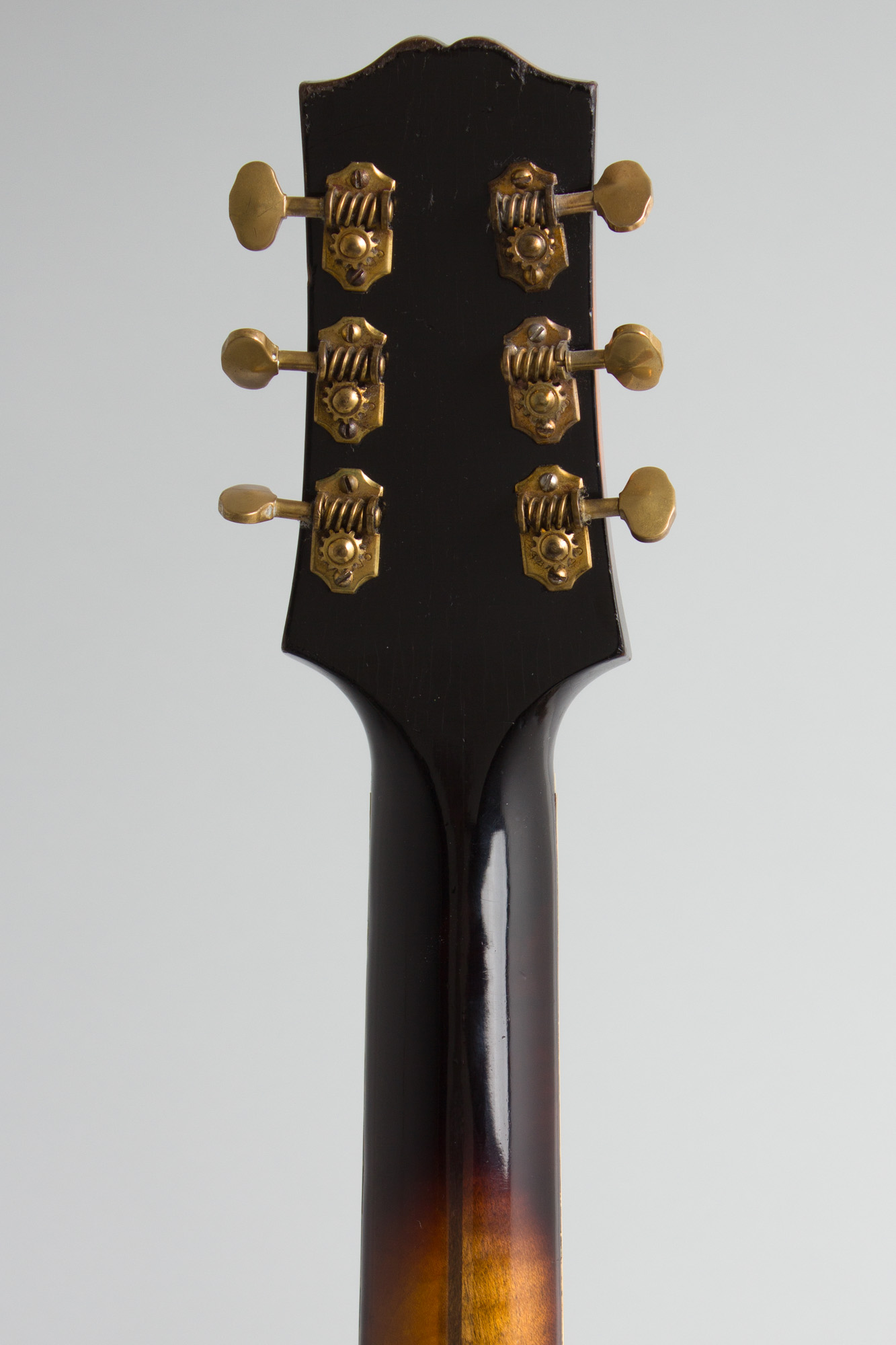

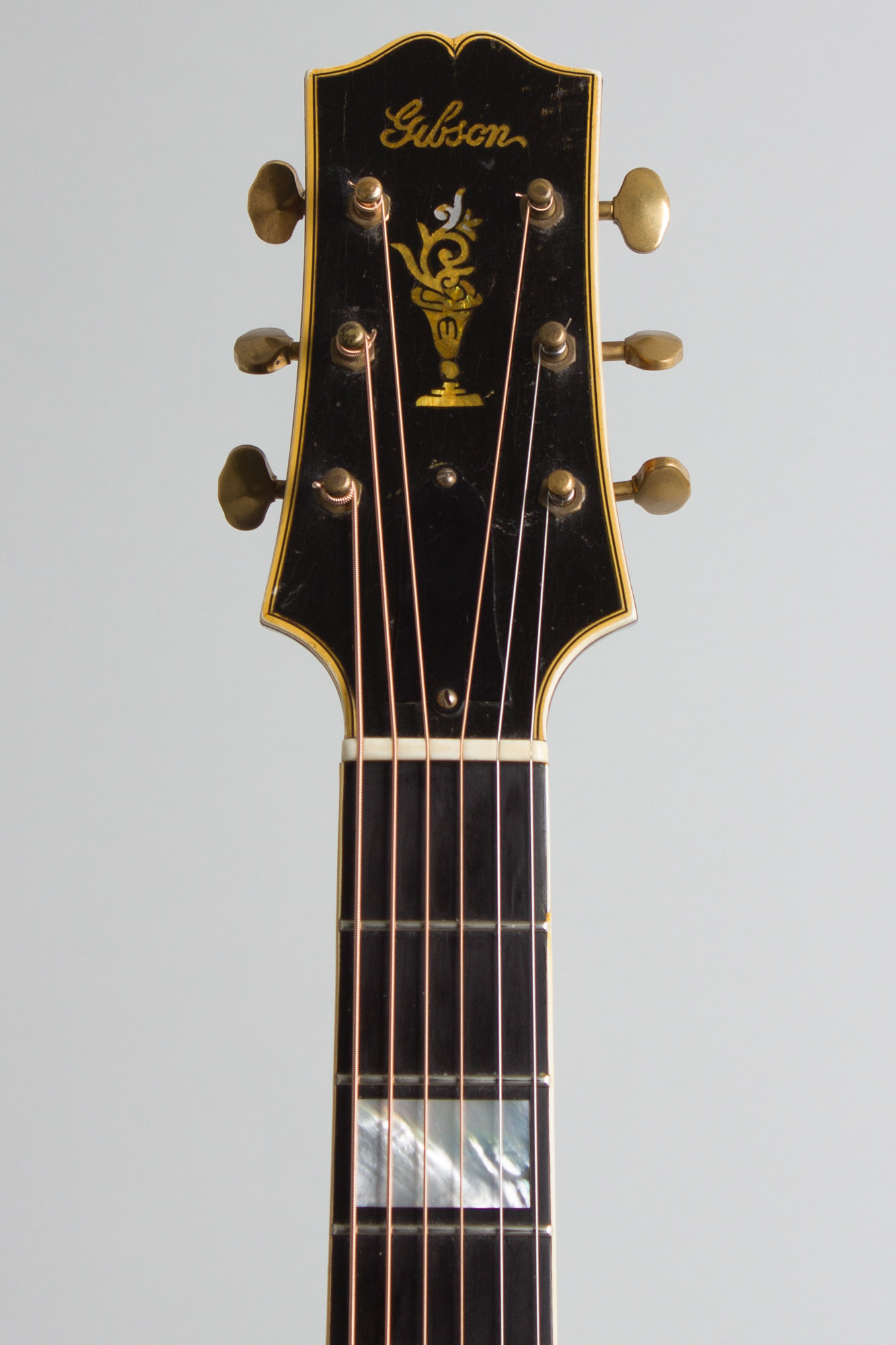

The pearl inlaid flowerpot in the triple-bound headstock with a straight across "Gibson" logo above are hallmarks of the 1932-35 L-5, as are the gold plated Grover G-98 tuners. These are the first-pattern style, with riveted gears and metal "butterbean" buttons. The long triple-bound celluloid pickguard is screwed to the top by the neck block instead of pinned to the side of the fingerboard. The tailpiece is the 1930's "string through" piece; the original adjustable ebony bridge is the smaller mid-1930's solid base style shared with lower-end Gibsons but also used on many L-5's in this period.
This instrument has a very even and versatile sound typical of these early L-5s; simultaneously warm and incisive with plenty of depth. It plays very comfortably and is extremely responsive for an archtop guitar...it even sounds lovely fingerstyle! This is simply another delightful and inspiring example of one of our all-time favorite instruments.
Overall length is 40 3/4 in. (103.5 cm.), 16 in. (40.6 cm.) wide at lower bout, and 3 1/4 in. (8.3 cm.) in depth, measured at side of rim. Scale length is 24 3/4 in. (629 mm.). Width of nut is 1 3/4 in. (44 mm.).

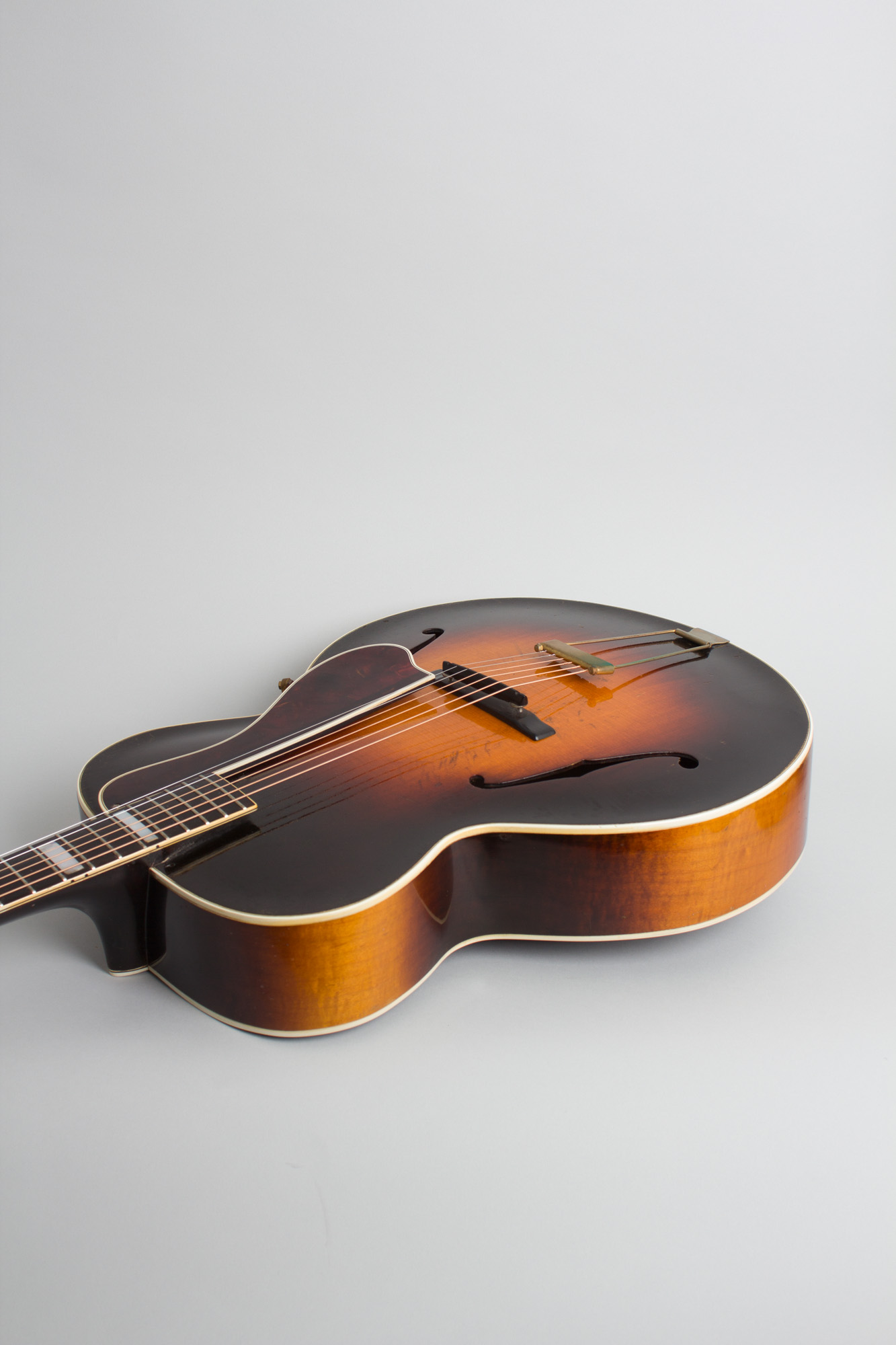

This wonderful playing and sounding L-5 shows some general wear and tear but remains more original than many in excellent structural condition. The finish shows typical checking with scratches, dings and dents overall, but no large areas of loss to the lacquer. The most notable wear is a number of pick scratches and dings to the top, mostly above the string line.
The body shows no cracks at all, repaired or otherwise. There are two very small screw patched holes that indicate a second pickguard was mounted at one time, or the guitar was once set up left handed. There is a minor finish disturbance on the top near the fingerboard, a telltale sign of an old floating DeArmond pickup having been mounted there.

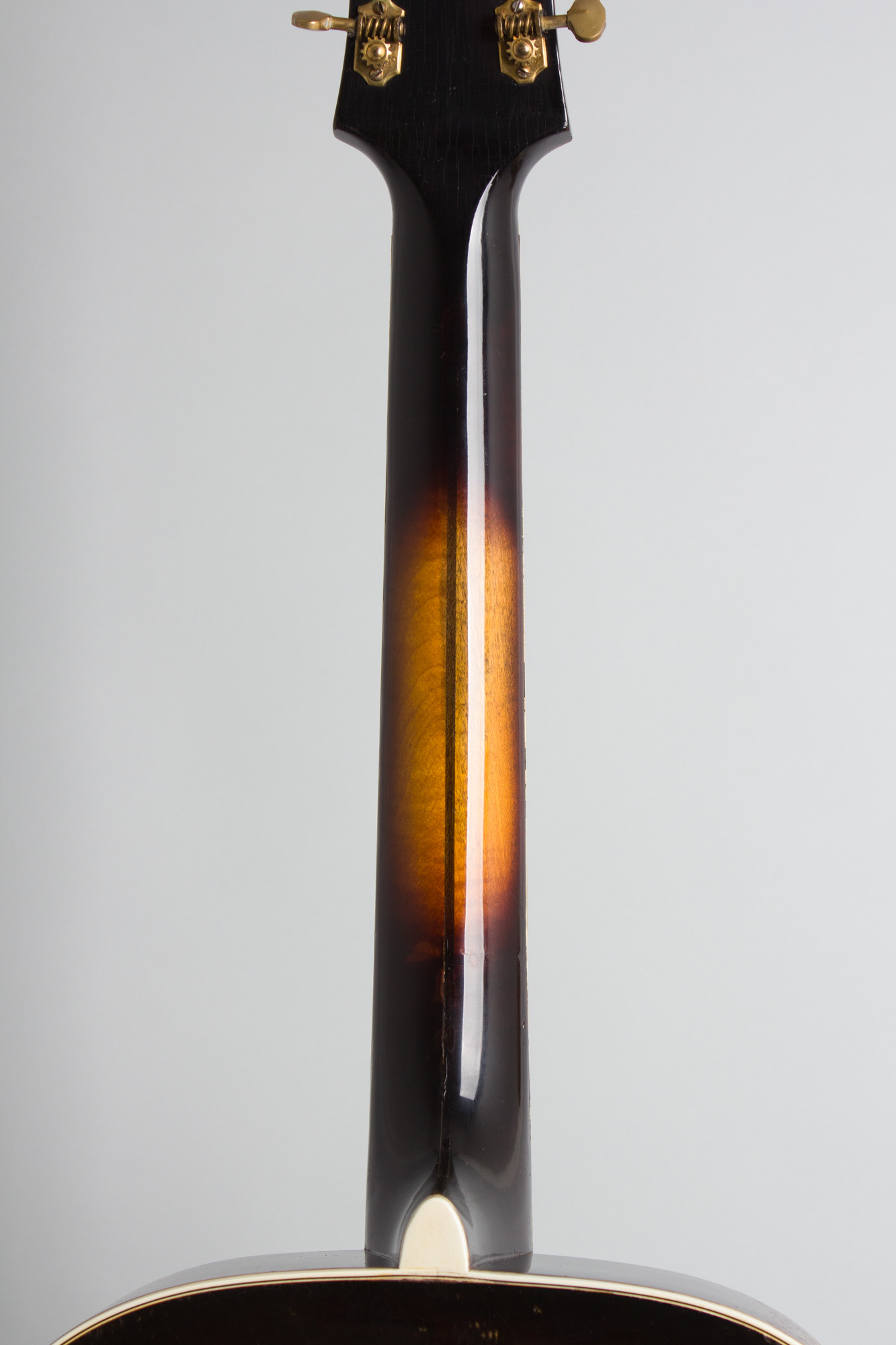

The center back of the neck was worn through slightly on the spine and has been oversprayed between the heel area and the headstock, with some old wear still visible beneath. There are repaired seam separations to the center neck laminate in several spots, most notably down towards the heel area; this is fairly discreet but visible on close inspection. These were solidly sealed up long ago, likely the reason the neck had overspray work done in the first place. There is some later touch up in this area that is over the overspray. A small strap button hole was patched on lower treble side of the heel.
The guitar was refretted some time back with wire that is a bit taller than the original; the frets are quite comfortable and not obnoxiously oversize. The ebony fingerboard itself shows hardly any wear. The bone nut is newer, the tuners are original and they and the tailpiece show some plating wear.

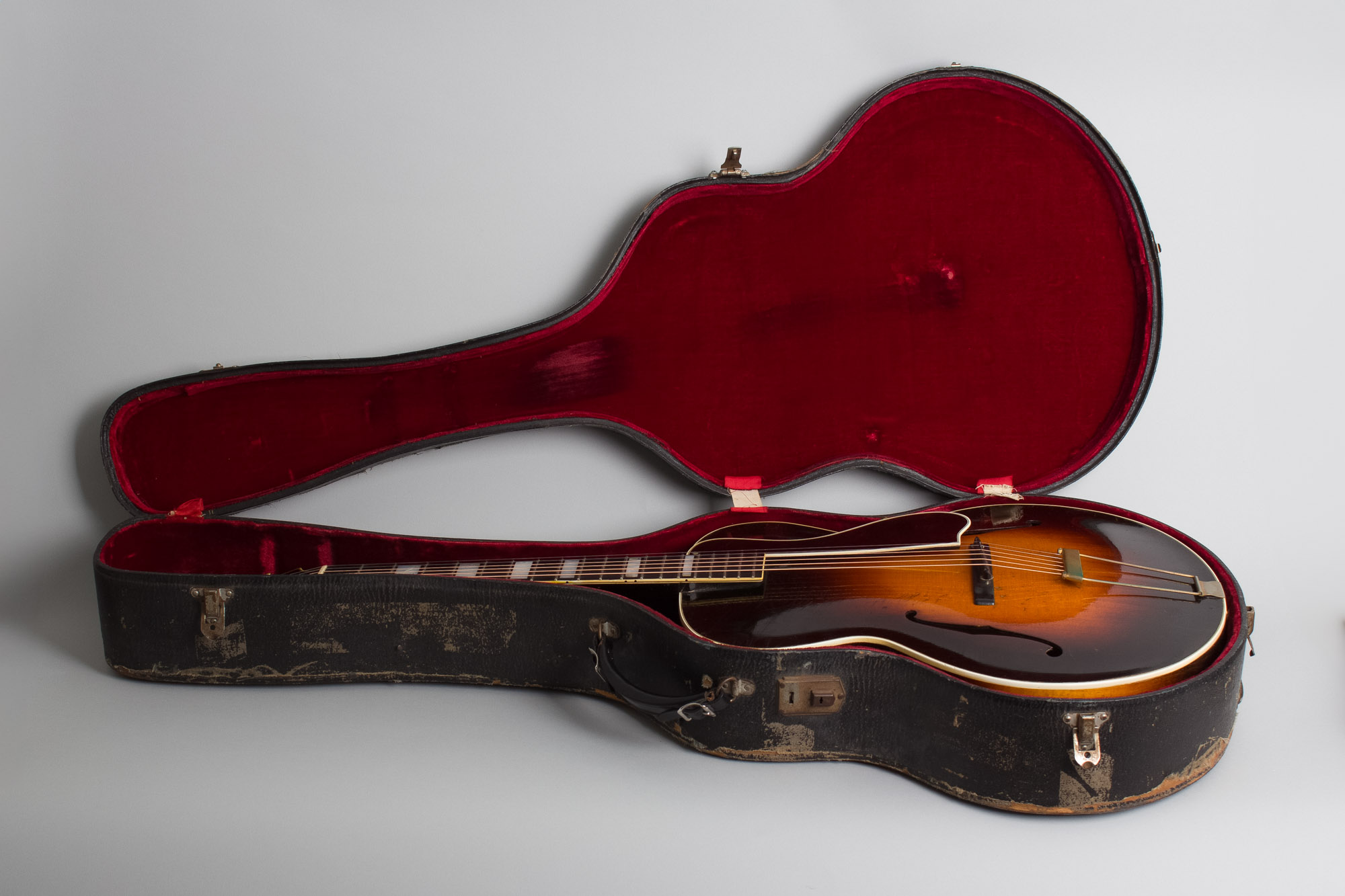

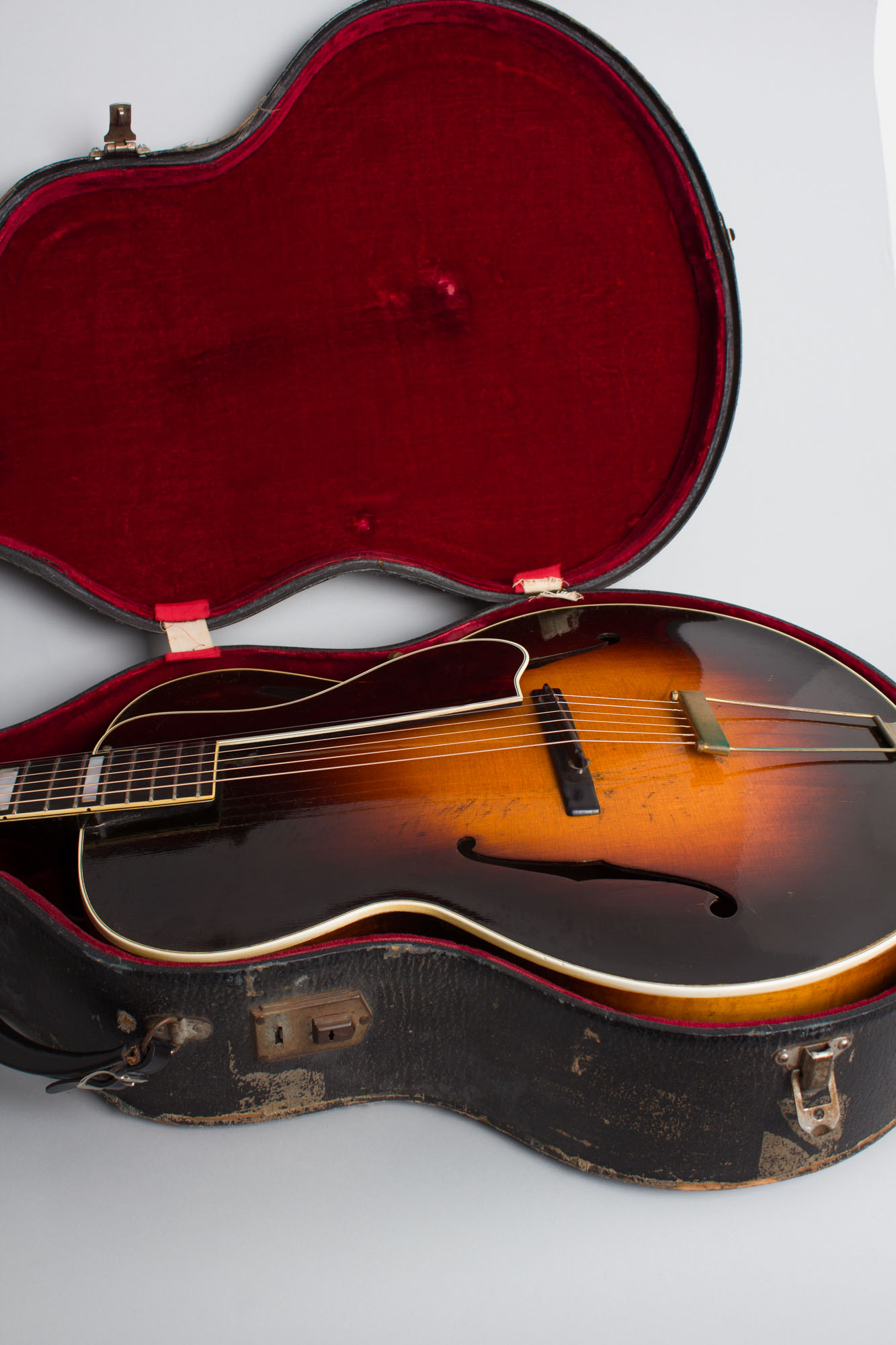

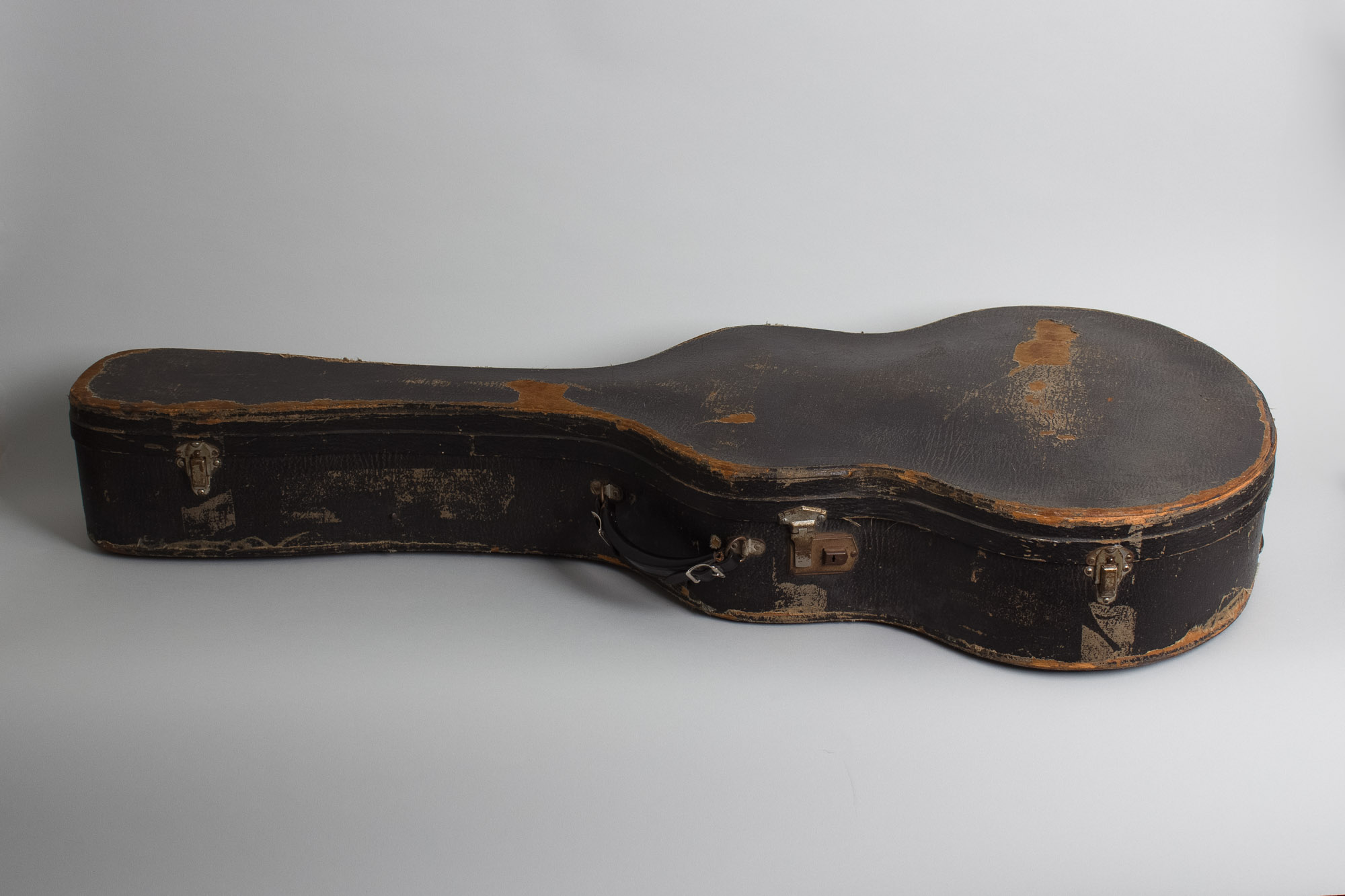

All hardware remans original, even the often replaced tortoise celluloid pickguard. The original bridge top looks to have possibly been lowered slightly long ago. The neck angle is very good and there is room for action adjustment in either direction if desired. This lovely L-5 is still housed in the original case, which has some typical external wear but is still solid with a replaced handle. Overall this is a delightful example of the final version of the 16" L-5, a joy to play and to hear and just a classy guitar in every way. Overall Excellent - Condition.
